Cudy LT400 Outdoor 4G N300 Wi-Fi Outdoor Router

Cudy LT400 Outdoor 4G N300 Wi-Fi Outdoor Router

General

Description

Features and Specifications of Cudy LT400 Outdoor 4G N300 Wi-Fi Outdoor Router

Key Features:

1. 4GHz Band
2. 300Mbps Data Speed
3. 2× Internal & 2× External Detachable Antennas
4. Up to 1,800 square feet (Open Space) Coverage
5. Access Control, Local Management, Remote Management, Wake on LAN

Specifications:

General:

1. WAN Type: 4G/Dynamic IP/Static IP/PPPoE
2. DHCP: Server, DHCP Client List, Address Reservation
3. Dynamic DNS: Compatible with 15 more DDNS providers
4. NAT: Port Forwarding, Port Triggering, UPnP, DMZ
5. VPN Server & Client: PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier
6. CWMP Protocol: TR069 / TR098 / TR111 / TR181
7. ACS Server Compatibility: GenieACS, OpenACS
8. Management: Access Control, Local Management, Remote Management, Wake on LAN
9. TTL: Extend/Spoof/Custom
10. DNS: Cloudflare/Google/Quad9/Custom
11. Internet Protocols: IPv4 / IPv6
12. IPv6: Relay | Dynamic (SLAAC/DHCPv6) | Static (Fixed IP) | Passthrough | MAP-E (Dual-stack) | DS-Lite (Dual-stack)
13. SMS: Send/Receive
14. 4G Band Lock: Support

Hardware:

1. LTE Module Model EU Version: EC200A-EL LTE-FDD: B1/B3/B7/B8/B20/B28A
2. LTE-TDD: B38/B40/B41
3. WCDMA: B1/B8
4. LTE Module Model US Version: EC25-AFXD
5. LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71
6. WCDMA: B2/B4/B5
7. Flash: 64 Mbit (8 MB) Flash
8. DDR: 512 Mbit (64 MB) DDR

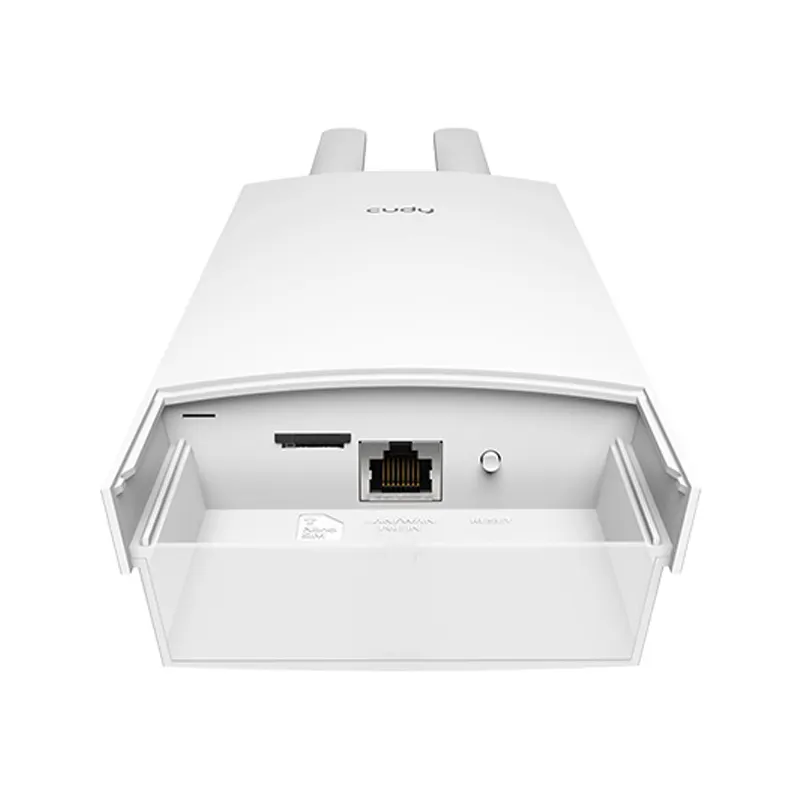

9. Interface: 1× 10/100Mbps WAN/LAN RJ45 Port (24V/0.5A passive PoE, 4/5+,7/8-) | 1× Reset Button | 1× Nano SIM Slot
10. LED: System/Internet/Ethernet/2.4G WiFi/5GHz WiFi/Signal Strength

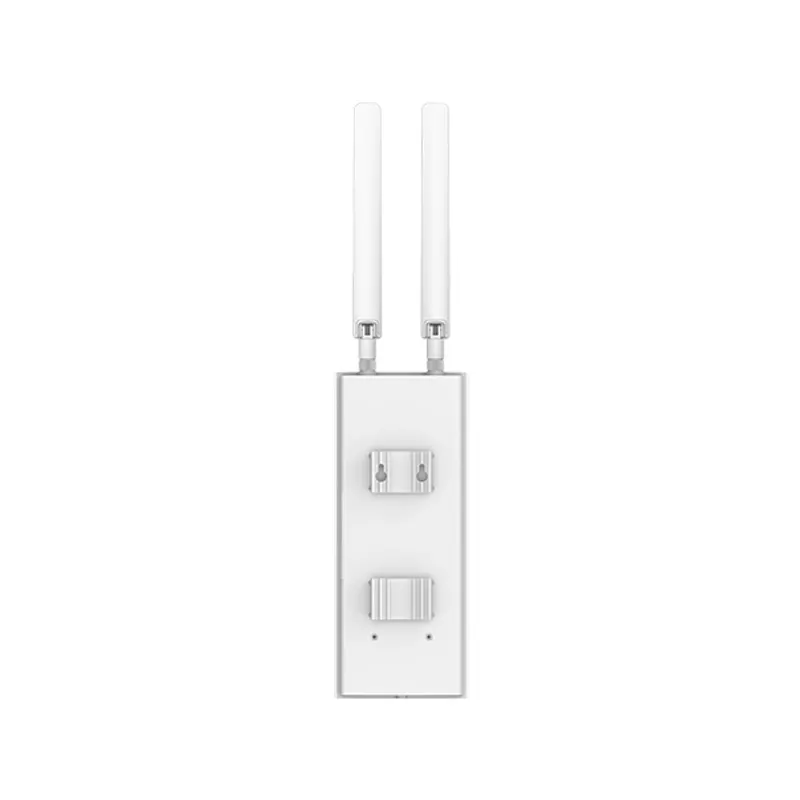

11. Antenna: 2× Internal Wi-Fi Antennas | 2× External Detachable 4G Antennas
12. Gain: 5 dBi

Wireless:

1. Wireless Standards: IEEE 802.11n
2. Frequency: 2.4 GHz
3. Signal Rate: 300 Mbps (2.4 GHz)
4. Compatible: 802.11b/g/n Wi-Fi standards
5. Transmit Power: CE: <20dBm | FCC:<30dBm
6. Wireless Modes: Enable/Disable Wireless Radio, WMM
7. Wireless Security: WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK

Environmental Requirements:

1. -20 ~ 60 °C (-4°F ~ 140°F)
2. Extend -40 ~ 65°C (-40°F ~ 149°F) (Booted up in advance. Performance may drop slightly.)

Dimensions:

1. Router Body: 240×100×53.7 mm (9.5×3.9×2.1 inches)
2. Antennas: 197.5×21.6×15.5 mm (7.8×0.9×0.6 inches)
3. Height of Router with Antennas installed: 438 mm (17.2 inches)

System Requirements:

1. Windows, MAC OS, NetWare, UNIX, or Linux
2. Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other web browser
3. If you are using 4G as your internet access, you will need a nano SIM card with an active data subscription,
4. If you are using WAN as your internet access, you will need a fiber/cable/DSL modem or any other wired internet source
