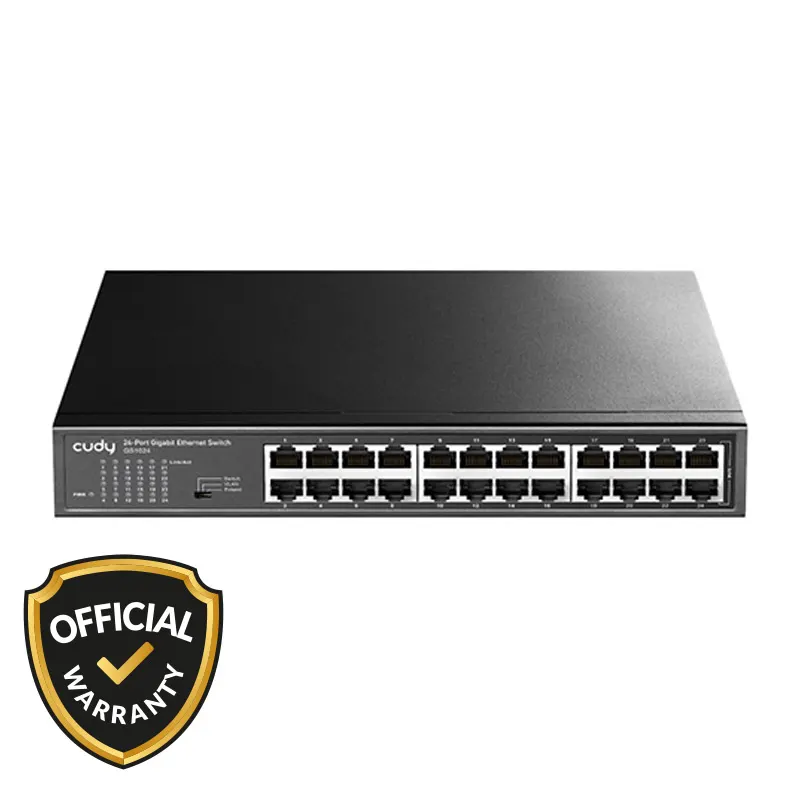

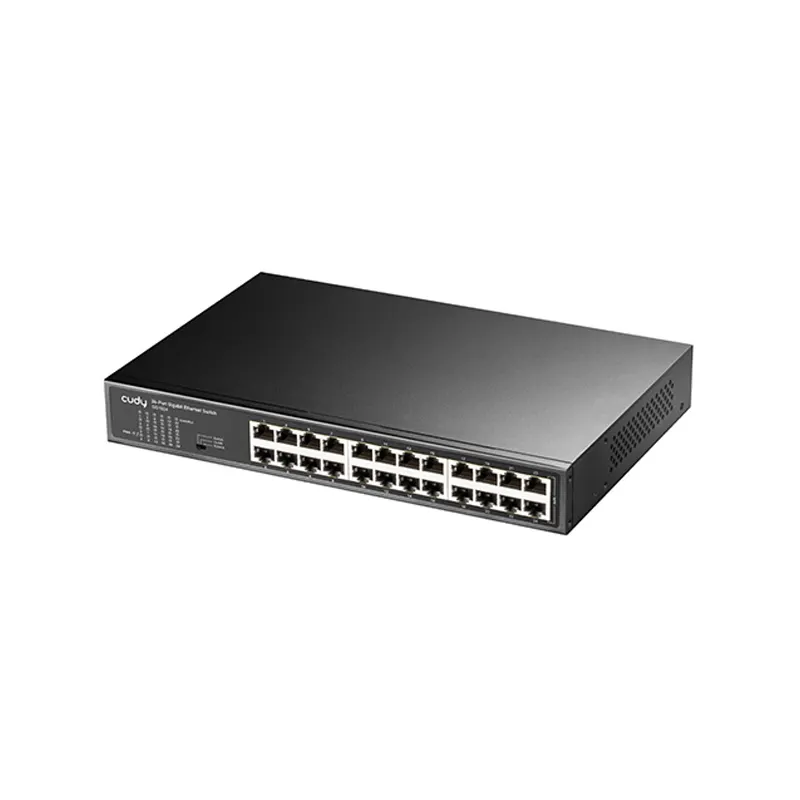

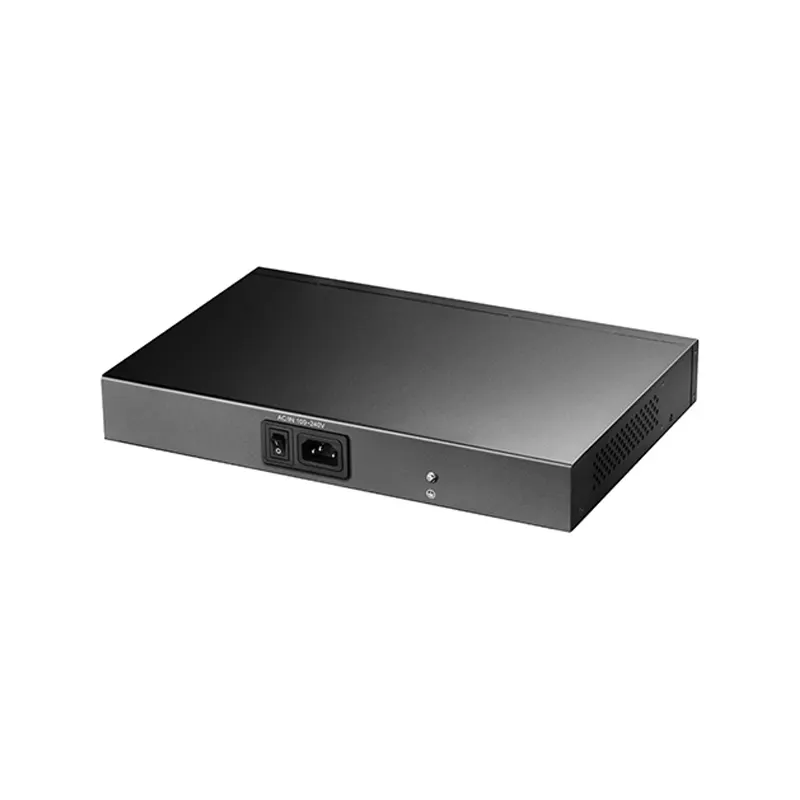

Cudy GS1024 24 Port Gigabit Ethernet Switch

Cudy GS1024 24 Port Gigabit Ethernet Switch

General

Description

Features and Specifications of Cudy GS1024 24 Port Gigabit Ethernet Switch

Key Features:

1. Store-and-forward switching method
2. Supports 16K MAC address auto-learning and auto-aging
3. 24x 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports
4. Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
5. Non-blocking switching architecture enables full wire-speed packet forwarding and filtering

Specifications:

1. Speed: 1-24 Port: 10/100/1000Mbps
2. Transmission Distance: 100Meter (328ft)
3. Ethernet Standard: IEEE 802.3/802.3u / 802.3ab
4. Switching capacity: 48G
5. MACAddress: 8K MAC address table
6. Transfer Rate: 14,880 pps for 10Mbps | 148,800 pps for 100Mbps | 148,8000 pps for 100Mbps
7. VLAN (1-22Ports): Port Isolation: Downlink designated ports are isolated from each other, and only transmit data with the uplink port.
8. Default: Standard Switch: All ports communicate freely
9. Extend (1-22Ports): Link Extension: The specified port speed drops to 10Mbps, max transmission distance is 250 meters.
10. LINK/ACT On: Green - The port is connecting
11. LINK/ACT Blinks: The port is receiving or transmitting data
12. LINK/ACT Off: The port is not linked successfully with the device
13. Power Supply: Built-in power supply
14. Voltage Range: Ac100~ 240V
15. Consumption: <15W
16. Operating Temperature: 0℃ ~ 40℃
17. Storage Temperature: -40℃ ~70
18. Operating Humidity: 10%~85% non-condensing
19. Storage humidity: 5%~85% non-condensing
20. Dimensions (L*W*H): 270 x 180 x 44mm
