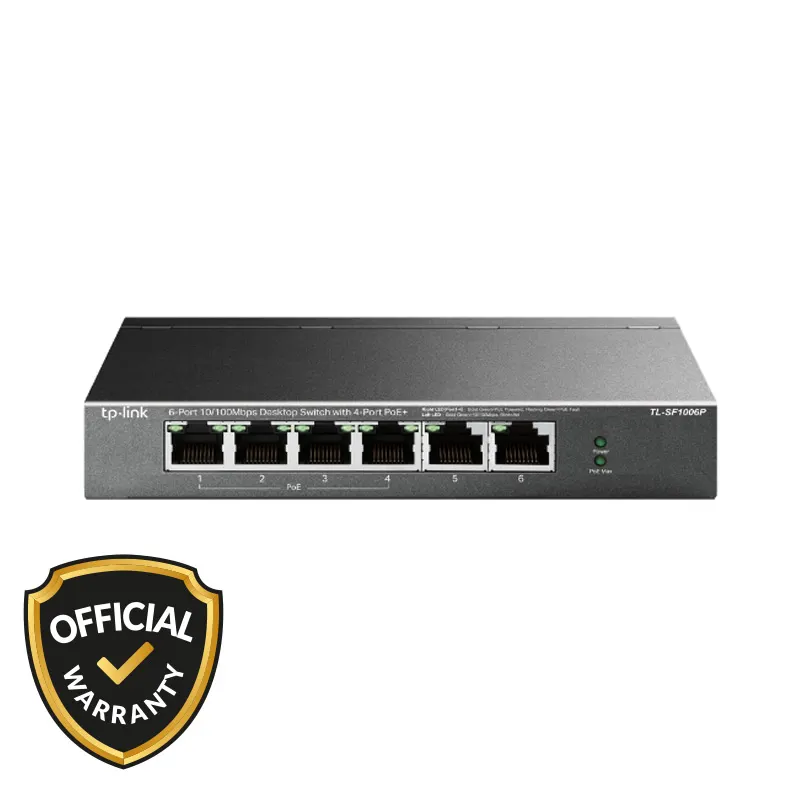

TP-LINK TL-SF1006P 6-Port 10/100Mbps Desktop Switch

Description

Key Features & Specifications of TP-LINK TL-SF1006P 6-Port 10/100Mbps Desktop Switch

Key Features

1. PoE+ Power
2. Extend Mode
3. Priority Mode
4. Plug and Play
5. Power Management
6. Durable Build Quality
7. Wide Compatibility

Specifications:

Hardware Functions:

Interface:

1. 6× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af/at PoE+)
2. Auto-Negotiation
3. Auto MDI/MDIX

Network Media:

1. 10BASE-T: UTP category 3, 4, 5 cable (max. 100m)
2. EIA/TIA-568 100Ω STP (max. 100m)
3. 100BASE-TX: UTP category 5, 5e cable (max. 100m)
4. EIA/TIA-568 100Ω STP (max. 100m)
5. Fan Quantity: Fanless design
6. Physical Security Lock: Yes

External Power Supply:

1. Output: 53.5 V DC / 1.31 A

PoE Ports (RJ45):

1. Standard: IEEE 802.3 af/at compliant
2. PoE Ports: Ports 1–4
3. Power Supply: 67 W
4. Packet Forwarding Rate: 0.8928 Mpps
5. MAC Address Table: 2K entries
6. Jumbo Frame: 2 KB
7. Switching Capacity: 1.2 Gbps

Max Power Consumption:

1. 9 W (220 V / 50 Hz, no PD connected)
2. 74 W (220 V / 50 Hz, with 67 W PD connected)

Max Heat Dissipation:

1. 48 BTU/h (no PD connected)
2. 34 BTU/h (with 67 W PD connected)

Software Functions:

Advanced Functions:

1. Compatible with IEEE 802.3af/at Compliant PDs
2. Extend Mode Button (Ports 1–4)
3. Priority Mode Button (Ports 1–2)
4. MAC Address Auto-Learning and Auto-Aging
5. IEEE 802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
6. Transmission Method: Store-and-Forward

Others:

1. Certifications: FCC, CE, RoHS

Environment:

1. Operating Temperature: 0–40 ℃ (32–104 ℉)
2. Storage Temperature: -40–70 ℃ (-40–158 ℉)
3. Operating Humidity: 10–90% RH non-condensing
4. Storage Humidity: 5–90% RH non-condensing

Dimensions (W x D X H):

1. 2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
