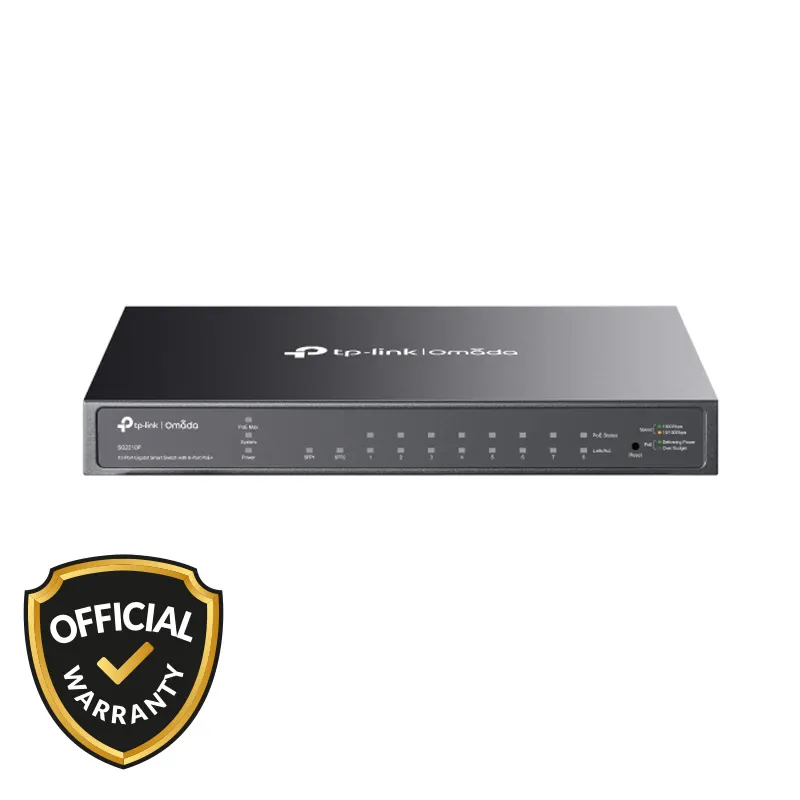

TP-LINK SG2210P Omada 10-Port Gigabit Smart Switch

Description

Key Features & Specifications of TP-LINK SG2210P Omada 10-Port Gigabit Smart Switch

Key Features:

1. 10-Port Gigabit Smart Switch
2. Centralized Cloud Management
3. Static Routing
4. Advanced Network Features
5. IGMP Snooping for optimized multicast performance
6. Silent Operation
7. Durable Build & Flexible Mounting
8. Multiple Application Scenarios

Specifications:

Hardware Functions:

Interfaces:

1. 8× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
2. 2× 100/1000 Mbps SFP Slots

Power Supply:

1. External Power Adapter (Output: 53.5VDC/1.31A)

PoE Ports:

1. Standard: IEEE 802.3af/at compliant
2. Power Budget: 61 W*
3. Fan Quantity: Fanless
4. Physical Security Lock: Yes
5. Dimensions (W×D×H): 209×126×26 mm (8.2×4.9×1.0 in)
6. Mounting Options: Desktop / Wall-Mounting
7. Max Power Consumption: 77.8 W (with 61 W PD connected)
8. Max Heat Dissipation: 265.3 BTU/hr (with 61 W PD connected)

Performance:

1. Switching Capacity: 20 Gbps
2. Packet Forwarding Rate: 14.88 Mpps
3. MAC Address Table: 8K
4. Packet Buffer Memory: 4.1 Mbit
5. Jumbo Frame: 9 KB

Software Functions:

1. Quality of Service (QoS)
2. 1p CoS/DSCP priority
3. 8 priority queues
4. SP (Strict Priority), WRR (Weighted Round Robin)
5. Bandwidth Control (Port/Flow based)
6. Storm Control (Broadcast/Multicast/Unknown-Unicast)
7. Layer 2 & Layer 2+
8. 32 IP Interfaces, Static Routing (32 IPv4/IPv6 routes)
9. DHCP Server, Relay (Interface/VLAN/L2), Static/Proxy/Gratuitous ARP
10. Link Aggregation, STP, Loopback Detection, Flow Control
11. Mirroring, LLDP/LLDP-MED, DLDP
12. L2 Multicast
13. 511 shared multicast groups
14. IGMP Snooping, MVR, Multicast Filtering
15. Limited IP Multicast (256 profiles, 16 entries/profile)

Advanced Functions:

1. Auto Device Discovery, Batch Config & Firmware Update†
2. Intelligent Monitoring, Event Warnings, Reboot Scheduler†

VLAN:

1. 4K VLANs, 802.1Q, MAC VLAN (12 entries), Protocol VLAN, GVRP, Voice VLAN
2. Access Control List (ACL)
3. Up to 230 entries
4. Time-based, MAC, IP, IPv6, Combined ACL
5. Rules for Mirroring, Redirect, Rate Limit, QoS
6. Port/VLAN binding

Security:

1. IP-MAC-Port Binding, AAA, 802.1X (Port/MAC-based, RADIUS support)
2. IP/IPv6-MAC Binding (512 entries), DHCP Snooping, ARP & ND Inspection
3. IP/IPv6 Source Guard, DoS Defend
4. Port Security (up to 64 MAC/port), Broadcast/Multicast Storm Control
5. Port Isolation
6. Secure Web (HTTPS), CLI (SSHv1/v2), Access Control (IP/Port/MAC)
7. IPv6 Support
8. Dual-stack IPv4/IPv6
9. IPv6 ACL, DHCPv6, ND, MLD Snooping
10. IPv6 Apps: Ping6, Tracert6, SNMP, SSH, SSL, TFTP, etc.

MIBs:

1. RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925
2. TP-Link Private MIBs, RMON (1,2,3,9)

Management:

1. Omada App: Yes (with Omada Controller†)
2. Centralized Management: Via Omada Cloud-Based/Hardware/Software Controller
3. Cloud Access & Zero-Touch Provisioning: Yes (Controller required)

Management Interfaces:

1. Web GUI
2. CLI (Telnet)
3. SNMP v1/v2c/v3
4. RMON (1,2,3,9)
5. SDM Template
6. DHCP/BOOTP Client
7. Dual Image & Config
8. Cable Diagnostics
9. CPU Monitoring
10. SNTP, System Log

Others:

1. Certifications: CE, FCC, RoHS

System Requirements:

1. Windows 98SE/NT/2000/XP/Vista/7/8/10/11, Mac OS, NetWare, UNIX, Linux

Environment:

1. Operating Temperature: 0℃–40℃ (32℉–104℉)
2. Storage Temperature: -40℃–70℃ (-40℉–158℉)
3. Operating Humidity: 10%–90% non-condensing
4. Storage Humidity: 5%–90% non-condensing
