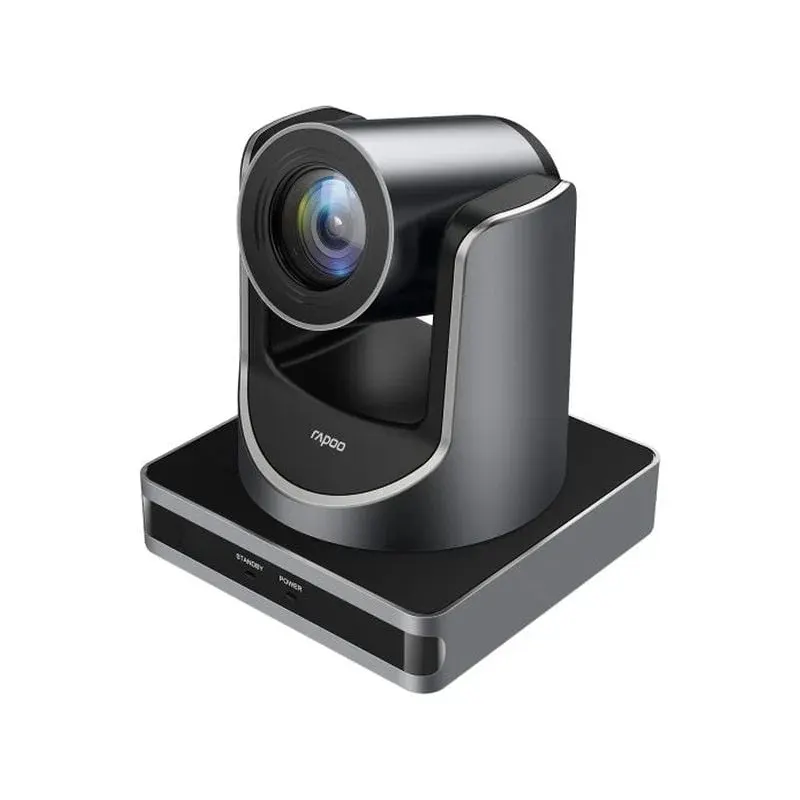

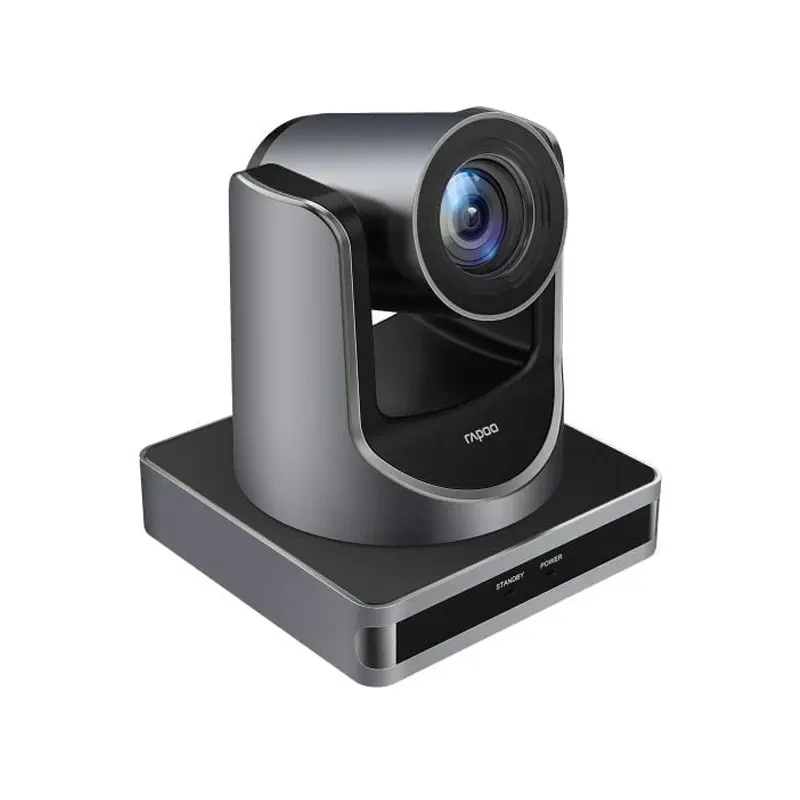

Rapoo C1612 HD 1080p Video Conference Camera

Description

Rapoo C1612 HD 1080p Video Conference Camera Specifications

Key Features:

1. Superb High-definition Full 1080P
2. 5° Wide-angle-lens +16x Digital Zoom
3. Rich Video Output Interfaces
4. 340° Quiet PTZ & Multiple Preset
5. Multiple Remote Controller
6. Multiple Remote Controller

Specifications:

Generic Specification:

1. Input Voltage: DC 12V/DC 5V/PoE(802.3af)
2. Current Consumption: 1.0A (Max)
3. Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F)
4. Storage Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
5. Power Consumption: 12W (Max)
6. MTBF: >30000h

Input/Output Interface:

1. USB Interface: 1xUSB3.0 | Type-C jack
2. HD output: 1xHDMI1.4b
3. Network Interface 1xRJ45 | 10M/100M Ethernet Interface
4. Audio Interface 1-ch: 3.5mm Audio Interface | Line In
5. Communication Interface 1xRS232 In: 8pin Min DIN | Max Distance: 30m | Protocol: VISCA/Pelco-D/Pelco-P | 1xRS485: 2pin Phoenix Port | Max Distance: 1200m | Protocol: VISCA/Pelco-D/Pelco-P
6. Power Jack JEITA type (DC IN 12V)/USB B type（DC IN 5V）/PoE

IPC Features:

1. Video Compression: H.264/MJEPG
2. Video Stream: Main Stream, Sub Stream
3. Main Stream Resolution: 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360
4. Sub Stream Resolution: 1280x720, 1024x576, 720x480, 720x408, 640x360, 320x240, 320x180
5. Video Bit Rate: 32Kbps ~ 102400Kbps
6. Bit Rate Type: Variable Rate, Fixed Rate
7. Frame Rate: 50Hz: 1fps ~ 50fps | 60Hz: 1fps ~ 60fps
8. Audio Compression: AAC
9. Audio Bit Rate: 96Kbps, 128Kbps, 256Kbps
10. Support Protocols: TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.

Camera:

1. Sensor: Type: 1/2.8'' | CMOS | Effective Pixel: 2.07M
2. Lens: 12x Optical Zoom | f3.5mm ~ 42.3mm, F1.8 ~ F2.8 | Digital Zoom: 16x
3. Scanner Mode: Progressive
4. Video System: 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50
5. Minimal Illumination: 0.5 Lux @ (F1.8, AGC ON)
6. Shutter Speed: 1/30s ~ 1/10000s
7. Digital Noise Reduction: 2D & 3D
8. White Balance: Auto, Preset modes (3000K, 4000K, 5000K, 6500K_1, 6500K_2, 6500K_3), One Push, Manual
9. Backlight Compensation: Support
10. Horizontal Rotation Range: ±170°
11. Vertical Rotation Range: -30° ~ +90°
12. Horizontal Angle of View: 72.5° ~ 6.9°
13. Vertical Angle of View: 44.8° ~ 3.9°
14. Pan Speed: 2.7° ~ 35.7°/s
15. Tilt Speed: 2.7° ~ 31.5°/s
16. Image Freeze: Support
17. H & V Flip: Support
18. Number of Presets: 255
19. Preset Accuracy: 0.1°

USB Interface:

1. Audio on USB: Support
2. UVC PTZ: Support
3. USB Video Communication Protocol: UVC 1.1~1.5 UVC PTZ
4. Color System/Compression: YUV 4 / H.264 / MJPEG
5. Video Format: YUY2 (ISOC): max to 1080P@60fps H.264 AVC: max to 1080P@60fps H.264 SVC(optional): max to 1080P@60fps MJPEG: max to 1080P@60fps

Operating System:

1. Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
