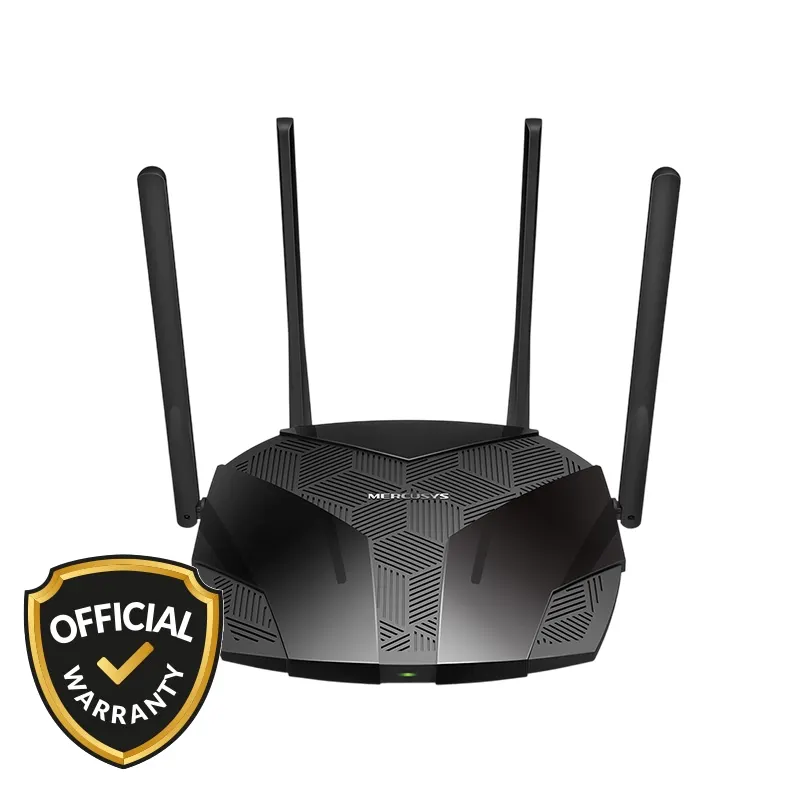

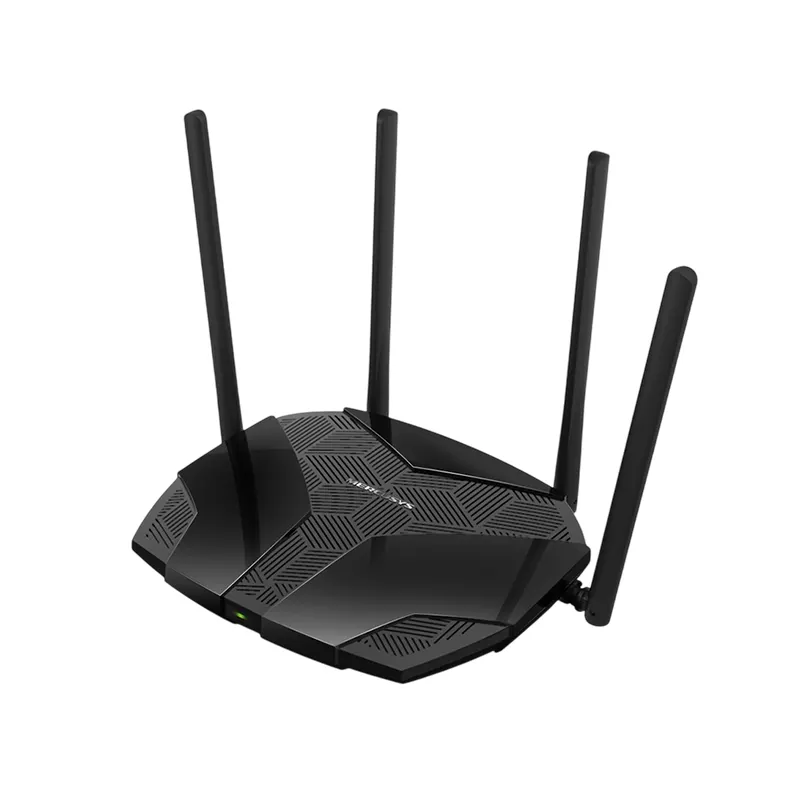

Mercusys AX3000 Dual Band Gigabit Wi-Fi 6 Router (MR80X)

Description

Key Features & Specifications of Mercusys AX3000 Dual Band Gigabit Wi-Fi 6 Router (MR80X)

Key Features:

1. Optimal Wi-Fi 6 Speeds
2. Overall Security Protection
3. Advanced MU-MIMO and OFDMA Technologies
4. Eco-Friendly Power Saving
5. Smart Connect

Specifications:

1. Data Rate: Up to 2402 Mbps (5 GHz) + Up to 574 Mbps (2.4 GHz)
2. Antenna: 4× 5 dBi Fixed Omni-Directional Antennas
3. Button: Reset/WPS Button
4. Frequency: 2.4 GHz < 20dBm (EIRP) | 5 GHz < 23dBm (Band1, Band2) | 5 GHz < 30dBm (Band3)
5. Wireless: Enable/Disable Wireless Radio, WMM
6. Interface: 1× Gigabit WAN Port + 3× Gigabit LAN Ports
7. Network Standard: Compatible with 802.11ax/ac/a/b/g/n Wi-Fi Standards
8. Encryption: WEP, WPA / WPA2-Personal, WPA2 / WPA3-Personal

Ports:

1. Network Services Enabled by Default: Web Server
2. Manage and Configure Device Through Web (HTTP/HTTPS): Port: 80/443 | Protocol: TCP
3. DHCP Server IP address assignment (DHCP): Port: 67 | Protocol: UDP
4. DNS: Port: 53 | Protocol: TCP & UDP
5. App Management and Configure Device Through App: Port: 20001; Protocol: TCP | Port: 20002; Protocol: UDP

Operating System Support:

1. WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
2. Management: Access Control, Local Management, Remote Management
3. NAT Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
4. Firewall Security: SPI Firewall, IP and MAC Address Binding
5. Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network
6. DHCP: Server, DHCP Client List
7. VPN Server: OpenVPN, PPTP Supported

Power Source:

1. Power Mode: Operating Temperature: 0°C~40°C (32°F~104°F) | Operating Humidity: 10%~90% Non-Condensing | Storage Humidity: 5%~90% Non-Condensing

Others:

1. Reception Sensitivity: 11g 6Mbps: -97dBm | 11g 54Mbps: -79dBm | 11n HT40 MCS7: -74dBm | 11n HT20 MCS7: -77dBm | 11a 6Mbps: -97dBm | 11a 54Mbps: -79dBm | 11ac VHT20 MCS8: -75dBm | 11ac VHT40 MCS9: -71dBm | 11ac VHT80 MCS9: -67dBm | 11ax VHT20 MCS11: -67dBm | 11ax VHT40 MCS11: -64dBm | 11ax VHT80 MCS11: -61dBm
