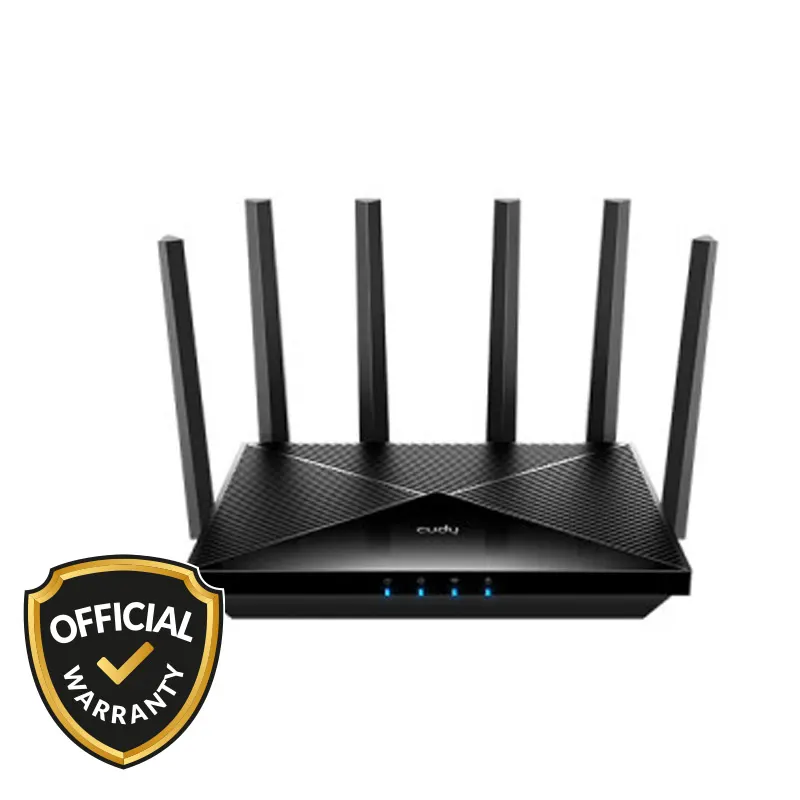

Cudy WR11000 BE11000 2.5G Mesh Wi-Fi 7 Router

Description

Features & Specifications of Cudy WR11000 BE11000 2.5G Mesh Wi-Fi 7 Router

Key Features:

1. 6-Stream Tri-Band Wi-Fi 7
2. 4× 2.5G Ethernet Ports
3. 7 Gbps + 4.3 Gbps + 688 Mbps
4. Covers 140 m² (1,500 ft²) with eFEM
5. Cudy App, Cloud Control

Specifications:

CPU:

1. Chipset: Qualcomm IPQ5322
2. CPU Details: 1.5 GHz Quad-Core CPU

Memory/Storage:

1. Flash/ROM: 128 MB (1 Gbit) NAND
2. DDR/RAM: 512 MB (4 Gbit) DDR4

General:

1. Operation Modes: Wi-Fi Router | Access Point | Range Extender | WISP | Client
2. Mesh: Cudy Mesh
3. Mesh Backhaul: Wireless Backhaul | Wired Backhaul
4. Multi-Band Backhaul: True
5. WAN Mode: DHCP | Static IP | PPPOE
6. Internet Failover Sequence: WAN, WISP
7. Wi-Fi Standards: Wi-Fi 7
8. Max Wi-Fi Modulation: 4K-QAM
9. Wi-Fi Efficiency: MLO | MRU | Puncturing | OFDMA | MU-MIMO | BSS Color
10. Max Capacity: 768
11. Recommended Client Upper Limit: 300
12. Max Wi-Fi Channel Width: 320 MHz
13. Wi-Fi Security: WPA/WPA2/WPA3
14. Guest Network: 2.4 GHz | 5 GHz | 6 GHz
15. WPS: True

Wireless:

1. 6 GHz Wi-Fi Speed: 5760 Mbps
2. 5 GHz Wi-Fi Speed: 4320 Mbps
3. 4 GHz Wi-Fi Speed: 688 Mbps
4. 6 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
5. 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
6. 4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
7. Wi-Fi Antennas: 6× Fixed
8. 6 GHz Antenna Gain Max: 5dBi
9. 5 GHz Antenna Gain Max: 5dBi
10. 4 GHz Antenna Gain Max: 5dBi
11. FEM or PA/LNA: 6 GHz- 2× High-Power | 5 GHz: 2× High-Power | 2.4 GHz: 2× Standard
12. Beamforming: True
13. Range Performance: Max: 260 m (853 ft)
14. Wall Performance: Two wooden walls with a thickness < 10 cm (4'') | One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

Interfaces:

1. 5G RJ45 Ports: 4
2. Ethernet Notes: 1× WAN port, the rest are LAN ports
3. LED: TBD
4. Physical Buttons: Power On/Off Button. WPS Button, Reset Button
5. Power Input: DC Jack

Power:

1. Power Methods: DC
2. DC: 12V 2A
3. Power Adapter:
4. Input: 100 ~ 240 V, 50/60 Hz AC
5. Output: 12V 2A DC

Reliability:

1. Environment: Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
2. Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
3. Humidity: 10% ~ 90% non-condensing
4. Storage Humidity: 5% ~ 95% non-condensing

Network:

1. QoS: Per-User Rate Limiting
2. DHCP: Address Reservation | DHCP Client List | Server
3. IP Versions: IPv4/IPv6
4. IPv6 Protocols: Relay | Dynamic (SLAAC/DHCPv6) | Static (Fixed IP) | Passthrough | 464XLAT | MAP-E | DS-Lite
5. IPTV/VLAN: Bridge | Tag VLAN
6. TTL Customization: Extend | Spoof | Custom
7. IGMP: IGMP Proxy | IGMP Snooping
8. Forwarding: Port Forwarding | Port Triggering | UPnP | DMZ
9. Firewall: SPI Firewall | DoS Protection | Block PING
10. Application Layer Gateway: IPSec Passthrough | L2TP Passthrough | PPTP Passthrough | FTP Passthrough | TFTP Passthrough | H323 Passthrough | SIP Passthrough | RTSP Passthrough

Utilities:

1. VPN Server: WireGuard | OpenVPN | IPsec, Zerotier | PPTP, L2TP
2. VPN Client: WireGuard | OpenVPN | IPsec | Zerotier | PPTP, L2TP
3. DNS Options: DNS over TLS | Manual DNS | Rebind Protection | Override Clients' DNS
4. DNS over TLS Providers: Cloudflare | Google, Quad9 | Custom
5. Wake on LAN: True
6. Online Detection: True

Management:

1. All Devices Management: Wi-Fi Time Schedule | MAC Filter | IP/MAC Binding
2. Per-Devices Management: Intenent On/Off | VPN On/Off | Online Time Schedule | Device Rename
3. Content Management: Domain Filter | IP Filter

System:

1. LED Control: True
2. Local Control Method: Config Web Page | App Control
3. Remote Control Method: Config Page via HTTPS | App Control | TR069/TR098/TR111/TR181
4. Firmware Upgrade: Local Update | App (Over the Air) | Online Update
5. Reliability: Timed Reboot | Backup and Restore
6. Diagnostic Tools: Diagnosis | Ping | Traceroute | NSLookup | System Log

Dashboard:

1. Panel: Internet Status | Mesh Status | Devices Management | WAN Status | LAN Status | WISP Status | Wi-Fi Status | VPN Status | DHCP Server Status | System Version
2. Charts: Mesh Topology | Internet Speed | WISP Speed | Wi-Fi Speed
