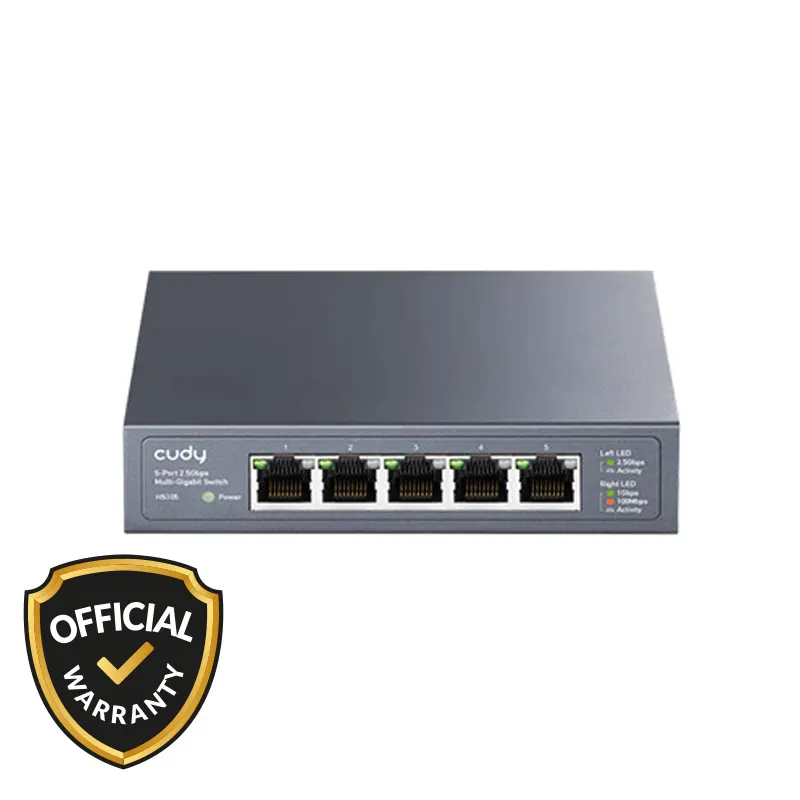

Cudy HS105 5 Port 2.5G Multi Gigabit Switch

Description

Features & Specifications of Cudy HS105 5 Port 2.5G Multi Gigabit Switch

Key Features:

1. High-Speed Networking
2. IGMP Snooping
3. Loop Prevention & Detection
4. Metal Casing
5. Energy Efficient
6. Wall-Mount & Desktop Installation
7. Lightning & ESD Protection
8. Plug & Play

Specifications:

Hardware & Design:

1. Ports: 5× 2.5G RJ45 Ethernet Ports
2. LED Indicators: Power, Speed/Link/ACT for each port
3. Casing Material: Metal
4. Installation: Desktop / Wall-mount

Network Performance:

1. Standards: IEEE 802.3bz (2.5/5 Gbps over Twisted Pair) | IEEE 802.3ab (1 Gbps over Twisted Pair) | IEEE 802.3u (100 Mbps over Twisted Pair) | IEEE 802.3x (Flow Control)
2. MAC Address Table: 8,192 entries
3. Max Switching Capacity: 25 Gbps
4. Max Forwarding Rate: 18.6 Mpps
5. Jumbo Frame Support: 15 KB
6. Packet Buffer: 4 Mbits

Cable Requirements:

1. 100 Mbps: Cat 5 or higher (100m)
2. 1 Gbps: Cat 5e or higher (100m)
3. 5 Gbps: Cat 5e (50m) / Cat 6 or higher (100m)

Power & Energy Efficiency:

1. Power Input: DC 12V 1A
2. Max Power Consumption: 10.5W
3. Idle Power Consumption: 4.7W
4. Energy-Saving Mode: Yes

Reliability & Protection:

1. Grounding: Dedicated grounding point
2. Lightning/Surge Protection: 2kV

ESD Protection:

1. Contact: 4kV
2. Air: 8kV

Environmental Conditions:

1. Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
2. Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
3. Operating Humidity: 10% ~ 90% (non-condensing)
4. Storage Humidity: 5% ~ 90% (non-condensing)

Physical Specifications:

1. Dimensions: 119 × 85 × 28 mm
