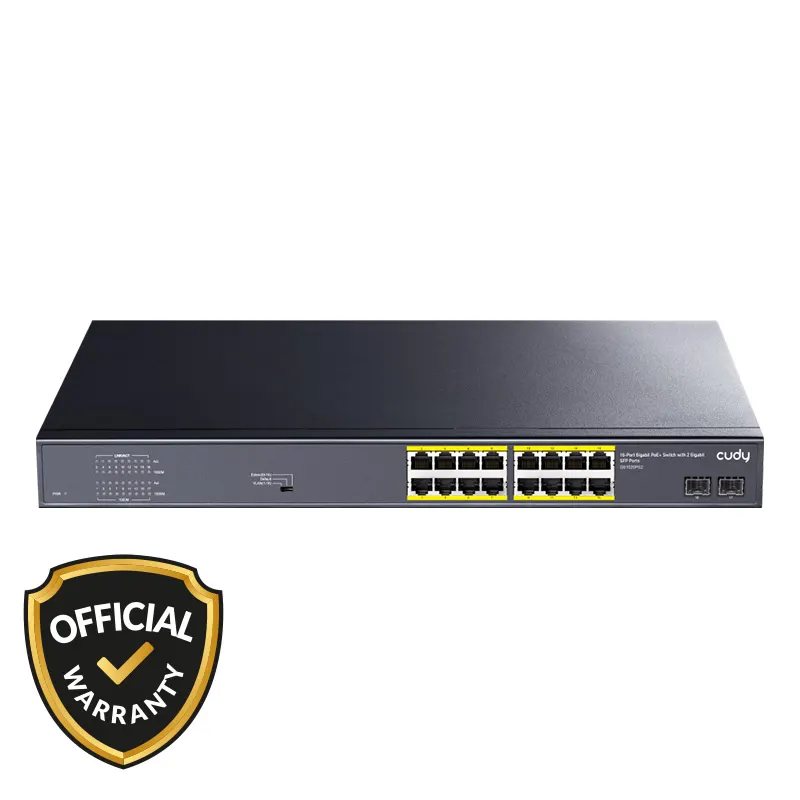

Cudy GS1020PS2 16 Port Gigabit PoE+ Switch

Description

Features and Specifications of Cudy GS1020PS2 16 Port Gigabit PoE+ Switch

Key Features:

1. IEEE 802.3af / 802.3at standard compliant
2. 200-watt total PoE power budget, up to 30-watt per port
3. 16xGbE PoE+Port+2 x SFP Port
4. CCTV Mode supports remote power&data feeding up to 250M
5. VLAN mode supports 16 POE+ ports isolated from each other
6. LED indicators for network diagnostics
7. 19-inch metal case, internal power design

Specifications:

PoE Parameters:

1. PoE Standard: IEEE802.3af /IEEE802.3at
2. Max each port (IEEE 802.3af): 15.4W
3. Max each port (IEEE 802.3at): 30W
4. PoE compatibility: IEEE 802.3af/at adaptive
5. PoE port output: DC48-55V
6. Power Pin: Power over spare pairs 1/2(+), 3/6 (-)

Network Media:

1. 10BASE-T: Cat 5E UTP (≤250 meter)
2. 100BASE-TX: Cat5 or more UTP (≤100 meter)
3. 1000BASE-TX: Cat5 or more UTP (≤100 meter)

Network Media (Cable):

1. IEEE802.3
2. IEEE802.3u
3. IEEE802.3x
4. IEEE802.3ab
5. IEEE802.3z

Optical:

1. MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km
2. Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km

Performance Specification:

1. Bandwidth: 52Gbps
2. MAC: 8K
3. Packet Buffer Memory: 4M
4. Packet Forwarding Rate: 38.7Mpps

Power Supply:

1. Power input: AC100-240V 50/60Hz
2. Power Budget: 200W

LED Indicator:

1. PWR: Power supply indicator (Red): Lighting: Powered, Un-Light: No Power
2. RJ-45 LINK indicator (Green): Lighting: 1000M Connect, Un-Light: 100M or Disconnect
3. RJ-45 ACT indicator (Green): Lighting: Connecting, Flashing: Data Transmit, Un-Light: Disconnect

Working Environment:

1. Operating Temperature: -20℃ ~ 50℃
2. Storage Temperature: -40℃ ~ 80℃
3. Operating Humidity: Max 90%, non-condensing
4. Storage Humidity: Max 95%, non-condensing
5. Working Height: Max to 10,000 feet (3,000 meters)
6. Storage Height: Max to 10,000 feet (3,000 meters)
