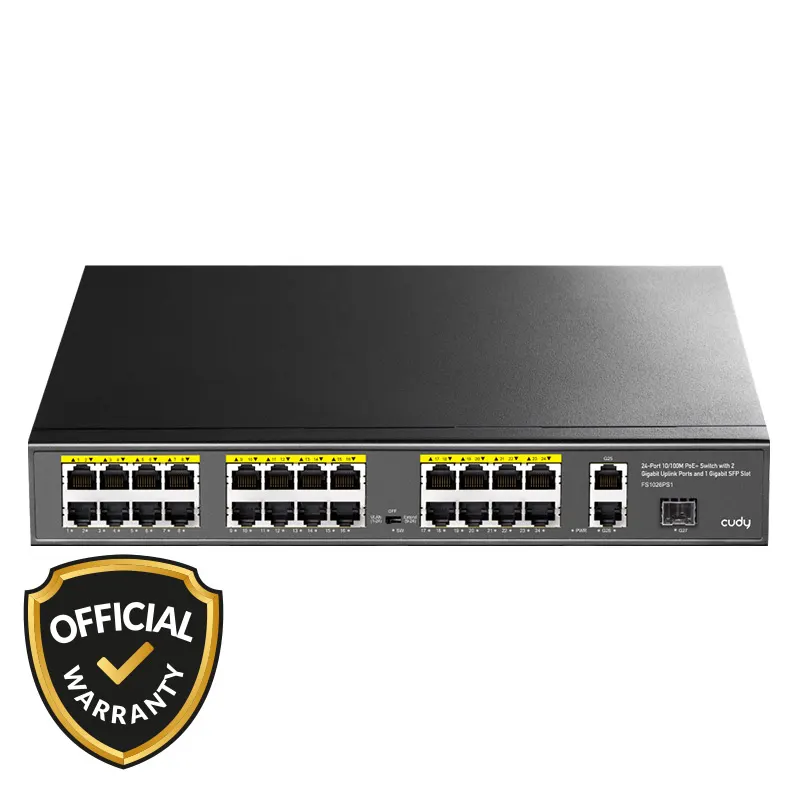

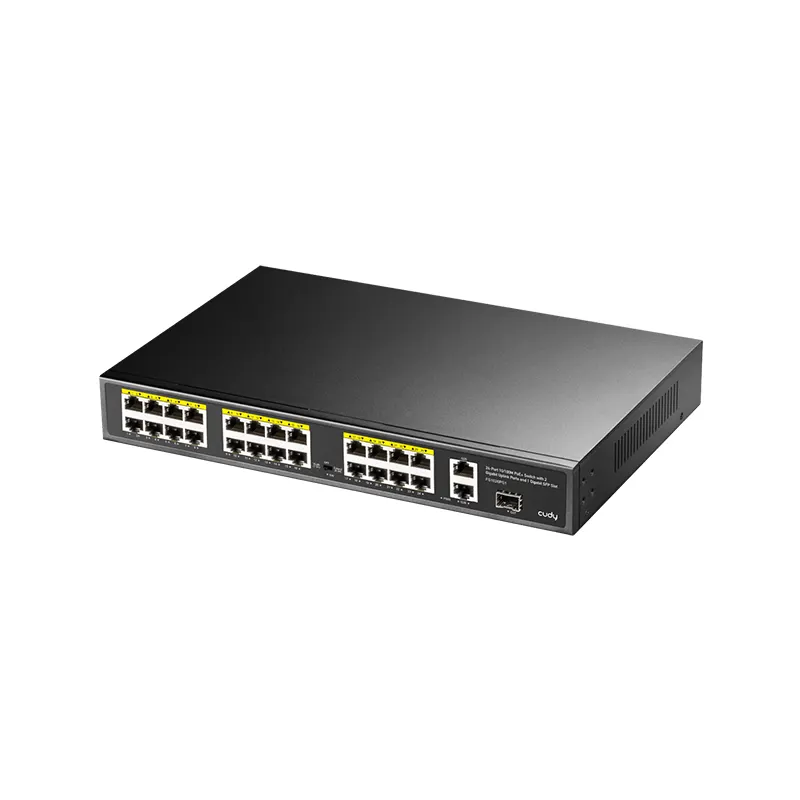

Cudy FS1026PS1 24 Port 10/100M PoE+ Switch

Description

Features and Specifications of Cudy FS1026PS1 24 Port 10/100M PoE+ Switch

Key Features:

1. 24 x 10/100M PoE+ ports
2. 2 x Gigabit Uplink port
3. 1 x 1.25Gbps SFP slot
4. 300 Watts PoE power budget
5. IEEE 802.3at / IEEE 802.3af standard compliant
6. Plug & play, simple setup with no configuration needed

Specifications:

Connector Type:

1. 24-Port 10/100M PoE+ Switch with 2 Gigabit Uplink Ports and 1 SFP Slot
2. Network Protocols: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z

PoE Parameters:

1. PoE Standard: IEEE802.3af /IEEE802.3at
2. Max each port: 15.4W (IEEE 802.3af), 30W (IEEE 802.3at)
3. PoE compatibility: IEEE 802.3af/at adaptive
4. PoE port output: DC48-55V
5. Power Pin: Power over spare pairs 1/2(+) , 3/6 (-)

Network Media:

1. 10BASE-T: Cat 6 UTP (≤250 meter)
2. 100BASE-TX: Cat5 or more UTP (≤100 meter)
3. 1000BASE-TX: Cat5 or more UTP (≤100 meter)

Optical:

1. Multi-Mode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km
2. Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km

Performance Specification:

1. Bandwidth: 10.8Gbps
2. MAC Address: 2K
3. Packet Buffer Memory: 1M
4. Packet Forwarding Rate: 8Mpps
5. Forwarding Mode: Store-And-Forward

Power Supply:

1. Product Input Voltage: AC100-240V 50/60Hz
2. Power Budget: 300W

LED Indicator:

1. PWR (Power supply indicator):
2. Red: Lighting: Powered, Un-Light: No Power
3. SW (DIP indicator):
4. Green: OFF: Normal, Vlan: Lighting, Extend: Slow flash
5. RJ-45 ACT indicator (Green):
6. Lighting: Connecting, Flashing: Data Transmit, Un-Light: Disconnect

MTBF:

1. 100,000 hours

Working Environment:

1. Operating Temperature: -20℃ ~ 50℃;
2. Storage Temperature: -40℃ ~ 85℃;
3. Operating Humidity: Max 90%, non-condensing
4. Storage Humidity: Max 95%, non-condensing
5. Working Height: Max to 10,000 feet (3,000 meters)
6. Storage Height: Max to 10,000 feet (3,000 meters)

Physical Parameter:

1. Dimension (LxWxH): 320x210x46mm
2. Weight: 1.9KG
