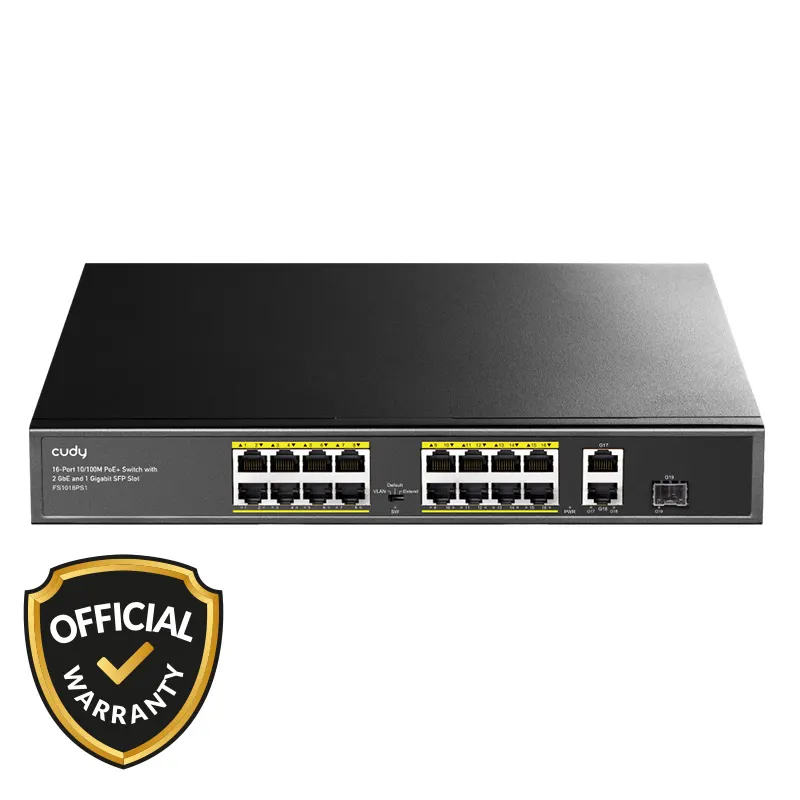

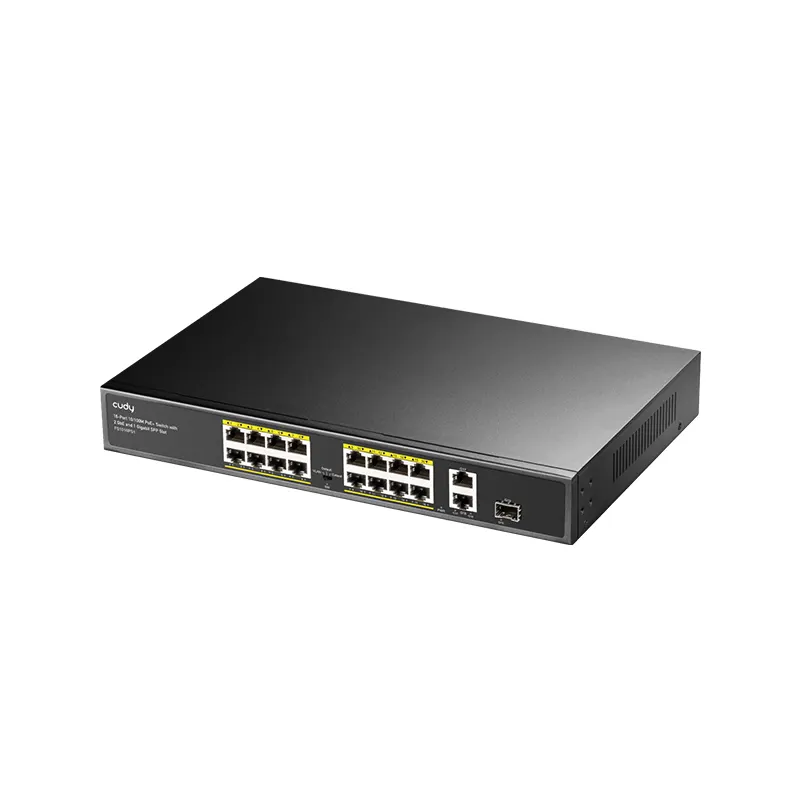

Cudy FS1018PS1 16-Port 10/100M PoE+ Switch

Description

Features and Specifications of Cudy FS1018PS1 16-Port 10/100M PoE+ Switch

Key Features:

1. 200 watts PoE power supply, up to 30 watts per port
2. 2 10/100/1000M uplink ports +1 SFP Port
3. 16 10/100M PoE+ ports
4. CCTV mode support remote PoE feeding up to 250m
5. VLAN mode isolate each PoE Ports for security
6. IEEE 802.3at / IEEE 802.3af standard compliant
7. Plug&play, simple setup with no configuration needed
8. Watchdog reactivates the abnormalPD by resuming POE power

Specifications:

1. Power Supply: Built-in power supply
2. Voltage Range: AC100~240V
3. Consumption: 190W for 16 PoE
4. Speed: 1~16 Port: 10/100/Mbps | G17~G18 Port: 10/100/1000Mbps | G19 Port: SFP 1.25bps
5. Transmission Distance: 100Meter(328ft) for RJ-45. The distance is determined by the optical module. The optical module is optional
6. Ethernet Standard: IEEE 802.3, 802.3u, 802.3ab, 802.3af/at
7. Switching Capacity: 7.2G
8. Transfer Rate: 14880 pps for 10Mbps | 148800 pps for 100Mbps | 1488000 pps for 1000Mbps
9. MAC Address: 4K MAC address table
10. Link/ACT: On (Green): The port is connecting | Blinks: The port is receiving or transmitting data. | Off: The port is not linked successfully with the device
11. POE: On (Orange): PD is connected | Off: No PD is connected or power forwarding fails
12. PoE Pin Assignment: V+(RJ45 Pin 1, 2) - (RJ45 Pin 3,6)
13. Working Temperature: 0~40°C
14. Storage Temperature: -40~70°C
15. Humidity Non-Condensing: 0~85%
16. Dimension (LxWxH): 280x180x44mm
