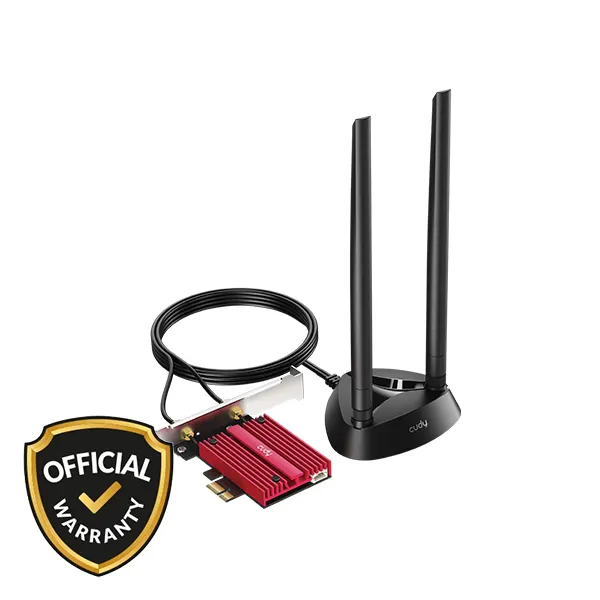

Cudy BE9300 Tri-Band Wi-Fi 7 Bluetooth PCI-E Adapter (WE9300S)

Description

Key Features & Specifications of Cudy BE9300 Tri-Band Wi-Fi 7 Bluetooth PCI-E Adapter (WE9300S)

Key Features:

1. Tri-Band Wi-Fi 7
2. 5.7Gbps + 2.8Gbps + 688Mbps Wi-Fi
3. Bluetooth 5.4
4. Intel BE200 Module
5. Detachable Antennas on Magnetic Base
6. Supports Intel-Platform Windows 11 PC

Specifications:

1. Version: WE9300S 2.0
2. 6 GHz Wi-Fi Speed: 5765 Mbps
3. 5 GHz Wi-Fi Speed: 2882 Mbps
4. 2.4 GHz Wi-Fi Speed: 688 Mbps
5. 6 GHz Wi-Fi Streams: 2 Spatial Streams
6. 5 GHz Wi-Fi Streams: 2 Spatial Streams
7. 2.4 GHz Wi-Fi Streams: 2 Spatial Streams
8. Wi-Fi Antennas: 2× Detachable Antennas on a Magnetic Base
9. Detachable Wi-Fi Antennas Connector: RP-SMA Female
10. Upstream Connection Interface: PCI-E x1 | USB 9-Pin
11. Operating Temperature: 0 to 70°C
12. Storage Temperature: -40 to 70°C
13. Humidity: 10% to 90% non-condensing
14. Storage Humidity: 5% to 95% non-condensing
15. Hardware Requirement: PCI-E x1 or higher standard slot on the motherboard for Wi-Fi, USB 9-Pin slot on the motherboard for Bluetooth function
16. Compatible OS: Windows 11 64-Bit | Intel-CPU Setup
17. Wi-Fi Standards: Wi-Fi 7
18. Max Wi-Fi Modulation: 4K-QAM
19. Wi-Fi Efficiency: MLO | MRU | Puncturing | OFDMA | MU-MIMO | BSS Color
20. Max Wi-Fi Channel Width: 320 MHz
21. MLO: 2.4GHz + 5GHz | 2.4GHz + 6GHz | 5GHz + 6GHz
22. Wi-Fi Security: WPA/WPA2/WPA3
23. Bluetooth Standard: V5.4
